BTMA-10-15T/D Soybean Oil Line Export To Brazil

10-15T/D Soybean Oil Line Export To Brazil


Recently, we have a customer ordered a 10-15T/D soybean oil production line export to Brazil. He is oiling a soybean plantation locally, and now he wants to open a soybean oil mill to engage in oil extraction business.

The main equipment of the soybean oil mill includes roaster, soybean oil presses, oil filters, and conveyors.

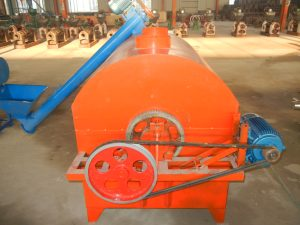

Roaster


6YL-160 Soybean Oil Press Machine


Soybean Oil Filter Machine


Screw Conveyor

Main parameters of related equipment about soybean oil mill in Brazil.


NameRoaster6YL-160 Oil Press6LB-550 Oil FilterScrew Conveyor
Capacity500KG/H600-700KG/H500KG/H500KG/H
Power3KW22KW2.5KW4KW
Size4200*1200*1600(mm)2750*660*810(mm)1600*960*910(mm)450*2000(mm)
Weight1000KG960KG750KG280KG


Soybean Oil Extraction Process

In fact, for many soybean oil mills, how to produce castor oil with low cost and easy operation has always been their top concern. In fact, the process of soybean oil extraction is very simple, but before pressing, the pretreatment process of soybeans is very important. Generally, there are two pretreatment methods, one is to crush the soybeans with a embryo pressing machine, and then steam the soybeans with a steamer. The other is to process soybeans with an extruder, and then put the extruded soybeans into an oil press for pressing.


Soybean Oil Production Process


1. Soybean Pretreatment Process.

Steam and fry.

The purpose of steaming soybeans to soften and then frying is to destroy the cell structure of oil plants, denature proteins, and improve the quality of soybean oil.

2. Soybean Oil Pressing Process.

This step is to use a screw press machine, with the help of mechanical external force, by increasing the temperature, the oil molecules are activated, and the oil in the soybean is squeezed out.

3. Soybean Oil Filtration Process

Use a plate and frame oil filter to filter impurities in soybean crude oil, so as to obtain clean and pure soybean oil.

The above is the detailed information of the 10-15t/d soybean oil line export to Brazil. This production line is for reference only. The soybean oil extraction production line also includes refining machinery and processes. If you are also interested in soybean oil production line or have needs, please contact us for more technical support on soybean oil production. We Benteng Machinery have rich experience in soybean oil processing, pressing and refining!

And we will also customize the oil extraction production line exclusively for you according to your specific needs and your local actual situation.

This article from BTMA website: www.oilpressstore.com
